feat(core): log out-of-sync details returned by sync generators when running nx sync:check (#32072)

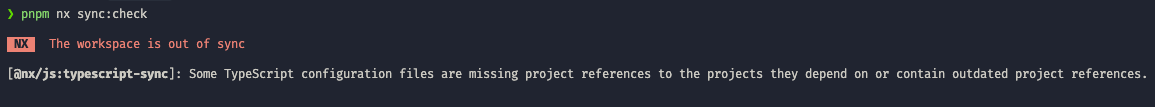

## Current Behavior

The `@nx/js:typescript-sync` generator does not provide details about
the out-of-sync files. It only returns a generic message.

<img width="1155" height="107" alt="image"
src="https://github.com/user-attachments/assets/6fc170cc-6aab-49cd-b17d-764da57b840a"
/>

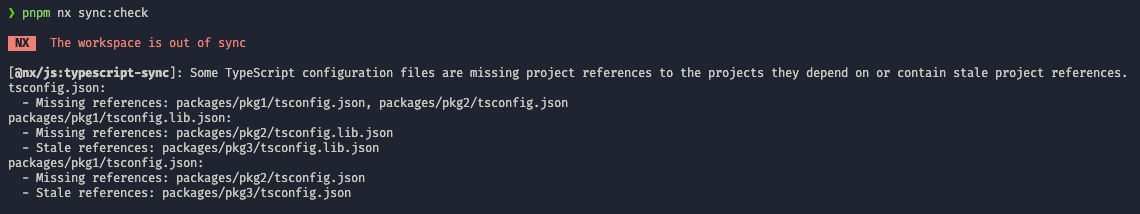

## Expected Behavior

The `nx sync:check` command should display additional details about the
out-of-sync files if provided by the sync generators. The
`@nx/js:typescript-sync` generator should provide details about the
out-of-sync files.

<img width="1140" height="214" alt="image"
src="https://github.com/user-attachments/assets/3c74df6c-7dc3-4462-b0c9-75bce5bf81b4"
/>

Note: the `nx sync` command will still only display the generic message
to avoid cluttering the logs and the details can be seen in the changes
made to files.

Author: leosvelperez

packages/js/src/generators/typescript-sync/typescript-sync.spec.ts

@@ -193,6 +193,42 @@ describe('syncGenerator()', () => {
     ).toStrictEqual(changesBeforeSyncing);
   });

+  it('should return an out of sync message and details when there are missing and stale references', async () => {
+    writeJson(tree, 'tsconfig.json', {
+      compilerOptions: { composite: true },
+      references: [
+        { path: './packages/c' }, // non-existing reference
+      ],
+    });
+    writeJson(tree, 'packages/b/tsconfig.json', {
+      compilerOptions: { composite: true },
+      references: [
+        { path: './some/thing' },
+        { path: './another/one' },
+        { path: '../c' }, // non-existing reference
+      ],
+    });
+    writeJson(tree, `packages/b/tsconfig.lib.json`, {
+      compilerOptions: { composite: true },
+    });
+
+    const result = await syncGenerator(tree);
+
+    expect((result as any).outOfSyncMessage).toBe(
+      'Some TypeScript configuration files are missing project references to the projects they depend on or contain stale project references.'
+    );
+    expect((result as any).outOfSyncDetails).toStrictEqual([
+      'tsconfig.json:',
+      '  - Missing references: packages/a/tsconfig.json, packages/b/tsconfig.json',
+      '  - Stale references: packages/c/tsconfig.json',
+      'packages/b/tsconfig.lib.json:',
+      '  - Missing references: packages/a/tsconfig.json',
+      'packages/b/tsconfig.json:',
+      '  - Missing references: packages/a/tsconfig.json',
+      '  - Stale references: packages/c/tsconfig.json',
+    ]);
+  });
+
   describe('root tsconfig.json', () => {
     it('should sync project references to the tsconfig.json', async () => {
       expect(readJson(tree, 'tsconfig.json').references).toBeUndefined();

packages/js/src/generators/typescript-sync/typescript-sync.ts

@@ -5,7 +5,6 @@ import {
   logger,
   parseJson,
   readNxJson,
-  type ExpandedPluginConfiguration,
   type ProjectGraph,
   type ProjectGraphProjectNode,
   type Tree,
@@ -18,10 +17,6 @@ import {
   type SyncGeneratorResult,
 } from 'nx/src/utils/sync-generators';
 import * as ts from 'typescript';
-import {
-  PLUGIN_NAME,
-  type TscPluginOptions,
-} from '../../plugins/typescript/plugin';

 interface Tsconfig {
   references?: Array<{ path: string }>;
@@ -55,8 +50,9 @@ type TsconfigInfoCaches = {
   composite: Map<string, boolean>;
   content: Map<string, string>;
   exists: Map<string, boolean>;
-  isFile: Map<string, boolean>;
 };
+type ChangedFileDetails = { missing: Set<string>; stale: Set<string> };
+type ChangeType = keyof ChangedFileDetails;

 export async function syncGenerator(tree: Tree): Promise<SyncGeneratorResult> {
   // Ensure that the plugin has been wired up in nx.json
@@ -66,7 +62,6 @@ export async function syncGenerator(tree: Tree): Promise<SyncGeneratorResult> {
     composite: new Map(),
     content: new Map(),
     exists: new Map(),
-    isFile: new Map(),
   };
   // Root tsconfig containing project references for the whole workspace
   const rootTsconfigPath = 'tsconfig.json';
@@ -120,23 +115,26 @@ export async function syncGenerator(tree: Tree): Promise<SyncGeneratorResult> {
   // made by this generator to know if the TS config is out of sync with the
   // project graph. Therefore, we don't format the files if there were no changes
   // to avoid potential format-only changes that can lead to false positives.
-  let hasChanges = false;
+  const changedFiles = new Map<string, ChangedFileDetails>();

   if (tsconfigProjectNodeValues.length > 0) {
     const referencesSet = new Set<string>();
     for (const ref of rootTsconfig.references ?? []) {
       // reference path is relative to the tsconfig file
       const resolvedRefPath = getTsConfigPathFromReferencePath(
-        tree,
         rootTsconfigPath,
-        ref.path,
-        tsconfigInfoCaches
+        ref.path
       );
       if (tsconfigExists(tree, tsconfigInfoCaches, resolvedRefPath)) {
         // we only keep the references that still exist
         referencesSet.add(normalizeReferencePath(ref.path));
       } else {
-        hasChanges = true;
+        addChangedFile(
+          changedFiles,
+          rootTsconfigPath,
+          resolvedRefPath,
+          'stale'
+        );
       }
     }

@@ -145,11 +143,16 @@ export async function syncGenerator(tree: Tree): Promise<SyncGeneratorResult> {
       // Skip the root tsconfig itself
       if (node.data.root !== '.' && !referencesSet.has(normalizedPath)) {
         referencesSet.add(normalizedPath);
-        hasChanges = true;
+        addChangedFile(
+          changedFiles,
+          rootTsconfigPath,
+          toFullProjectReferencePath(node.data.root),
+          'missing'
+        );
       }
     }

-    if (hasChanges) {
+    if (changedFiles.size > 0) {
       const updatedReferences = Array.from(referencesSet)
         // Check composite is true in the internal reference before proceeding
         .filter((ref) =>
@@ -181,7 +184,7 @@ export async function syncGenerator(tree: Tree): Promise<SyncGeneratorResult> {
   };

   const collectedDependencies = new Map<string, ProjectGraphProjectNode[]>();
-  for (const [projectName, data] of Object.entries(projectGraph.dependencies)) {
+  for (const projectName of Object.keys(projectGraph.dependencies)) {
     if (
       !projectGraph.nodes[projectName] ||
       projectGraph.nodes[projectName].data.root === '.'
@@ -224,39 +227,55 @@ export async function syncGenerator(tree: Tree): Promise<SyncGeneratorResult> {
       }

       // Update project references for the runtime tsconfig
-      hasChanges =
-        updateTsConfigReferences(
-          tree,
-          tsSysFromTree,
-          tsconfigInfoCaches,
-          runtimeTsConfigPath,
-          dependencies,
-          sourceProjectNode.data.root,
-          projectRoots,
-          runtimeTsConfigFileName,
-          runtimeTsConfigFileNames
-        ) || hasChanges;
-    }
-
-    // Update project references for the tsconfig.json file
-    hasChanges =
       updateTsConfigReferences(
         tree,
         tsSysFromTree,
         tsconfigInfoCaches,
-        sourceProjectTsconfigPath,
+        runtimeTsConfigPath,
         dependencies,
         sourceProjectNode.data.root,
-        projectRoots
-      ) || hasChanges;
+        projectRoots,
+        changedFiles,
+        runtimeTsConfigFileName,
+        runtimeTsConfigFileNames
+      );
+    }
+
+    // Update project references for the tsconfig.json file
+    updateTsConfigReferences(
+      tree,
+      tsSysFromTree,
+      tsconfigInfoCaches,
+      sourceProjectTsconfigPath,
+      dependencies,
+      sourceProjectNode.data.root,
+      projectRoots,
+      changedFiles
+    );
   }

-  if (hasChanges) {
+  if (changedFiles.size > 0) {
     await formatFiles(tree);

+    const outOfSyncDetails: string[] = [];
+    for (const [filePath, details] of changedFiles) {
+      outOfSyncDetails.push(`${filePath}:`);
+      if (details.missing.size > 0) {
+        outOfSyncDetails.push(
+          `  - Missing references: ${Array.from(details.missing).join(', ')}`
+        );
+      }
+      if (details.stale.size > 0) {
+        outOfSyncDetails.push(
+          `  - Stale references: ${Array.from(details.stale).join(', ')}`
+        );
+      }
+    }
+
     return {
       outOfSyncMessage:
-        'Some TypeScript configuration files are missing project references to the projects they depend on or contain outdated project references.',
+        'Some TypeScript configuration files are missing project references to the projects they depend on or contain stale project references.',
+      outOfSyncDetails,
     };
   }
 }
@@ -306,9 +325,10 @@ function updateTsConfigReferences(
   dependencies: ProjectGraphProjectNode[],
   projectRoot: string,
   projectRoots: Set<string>,
+  changedFiles: Map<string, ChangedFileDetails>,
   runtimeTsConfigFileName?: string,
   possibleRuntimeTsConfigFileNames?: string[]
-): boolean {
+): void {
   const stringifiedJsonContents = readRawTsconfigContents(
     tree,
     tsconfigInfoCaches,
@@ -334,15 +354,11 @@ function updateTsConfigReferences(

     // reference path is relative to the tsconfig file
     const resolvedRefPath = getTsConfigPathFromReferencePath(
-      tree,
       tsConfigPath,
-      ref.path,
-      tsconfigInfoCaches
+      ref.path
     );
     if (
       isProjectReferenceWithinNxProject(
-        tree,
-        tsconfigInfoCaches,
         resolvedRefPath,
         projectRoot,
         projectRoots
@@ -353,6 +369,10 @@ function updateTsConfigReferences(
       references.push(ref);
       newReferencesSet.add(normalizedPath);
     }
+
+    if (!newReferencesSet.has(normalizedPath)) {
+      addChangedFile(changedFiles, tsConfigPath, resolvedRefPath, 'stale');
+    }
   }

   let hasChanges = false;
@@ -441,6 +461,12 @@ function updateTsConfigReferences(
     }
     if (!originalReferencesSet.has(relativePathToTargetRoot)) {
       hasChanges = true;
+      addChangedFile(
+        changedFiles,
+        tsConfigPath,
+        toFullProjectReferencePath(referencePath),
+        'missing'
+      );
     }
   }

@@ -454,8 +480,6 @@ function updateTsConfigReferences(
       references
     );
   }
-
-  return hasChanges;
 }

 // TODO(leo): follow up with the TypeScript team to confirm if we really need
@@ -522,18 +546,20 @@ function normalizeReferencePath(path: string): string {
     .replace(/^\.\//, '');
 }

+function toFullProjectReferencePath(path: string): string {
+  const normalizedPath = normalizeReferencePath(path);
+
+  return normalizedPath.endsWith('.json')
+    ? normalizedPath
+    : joinPathFragments(normalizedPath, 'tsconfig.json');
+}
+
 function isProjectReferenceWithinNxProject(
-  tree: Tree,
-  tsconfigInfoCaches: TsconfigInfoCaches,
   refTsConfigPath: string,
   projectRoot: string,
   projectRoots: Set<string>
 ): boolean {
-  let currentPath = getTsConfigDirName(
-    tree,
-    tsconfigInfoCaches,
-    refTsConfigPath
-  );
+  let currentPath = getTsConfigDirName(refTsConfigPath);

   if (relative(projectRoot, currentPath).startsWith('..')) {
     // it's outside of the project root, so it's an external project reference
@@ -568,28 +594,22 @@ function isProjectReferenceIgnored(
   return ig.ignores(refTsConfigPath);
 }

-function getTsConfigDirName(
-  tree: Tree,
-  tsconfigInfoCaches: TsconfigInfoCaches,
-  tsConfigPath: string
-): string {
-  return tsconfigIsFile(tree, tsconfigInfoCaches, tsConfigPath)
+function getTsConfigDirName(tsConfigPath: string): string {
+  return tsConfigPath.endsWith('.json')
     ? dirname(tsConfigPath)
     : normalize(tsConfigPath);
 }

 function getTsConfigPathFromReferencePath(
-  tree: Tree,
   ownerTsConfigPath: string,
-  referencePath: string,
-  tsconfigInfoCaches: TsconfigInfoCaches
+  referencePath: string
 ): string {
   const resolvedRefPath = joinPathFragments(
     dirname(ownerTsConfigPath),
     referencePath
   );

-  return tsconfigIsFile(tree, tsconfigInfoCaches, resolvedRefPath)
+  return resolvedRefPath.endsWith('.json')
     ? resolvedRefPath
     : joinPathFragments(resolvedRefPath, 'tsconfig.json');
 }
@@ -640,22 +660,15 @@ function hasCompositeEnabled(
   return tsconfigInfoCaches.composite.get(tsconfigPath);
 }

-function tsconfigIsFile(
-  tree: Tree,
-  tsconfigInfoCaches: TsconfigInfoCaches,
-  tsconfigPath: string
-): boolean {
-  if (tsconfigInfoCaches.isFile.has(tsconfigPath)) {
-    return tsconfigInfoCaches.isFile.get(tsconfigPath);
-  }
-
-  if (tsconfigInfoCaches.content.has(tsconfigPath)) {
-    // if it has content, it's a file
-    tsconfigInfoCaches.isFile.set(tsconfigPath, true);
-    return true;
+function addChangedFile(
+  changedFiles: Map<string, ChangedFileDetails>,
+  filePath: string,
+  referencePath: string,
+  type: ChangeType
+) {
+  if (!changedFiles.has(filePath)) {
+    changedFiles.set(filePath, { missing: new Set(), stale: new Set() });
   }

-  tsconfigInfoCaches.isFile.set(tsconfigPath, tree.isFile(tsconfigPath));
-
-  return tsconfigInfoCaches.isFile.get(tsconfigPath);
+  changedFiles.get(filePath)[type].add(referencePath);
 }

packages/nx/src/command-line/sync/sync.ts

@@ -78,11 +78,19 @@ export function syncHandler(options: SyncOptions): Promise<number> {
       return 1;
     }

-    const resultBodyLines = getSyncGeneratorSuccessResultsMessageLines(results);
+    const resultBodyLines = getSyncGeneratorSuccessResultsMessageLines(
+      results,
+      // log the out of sync details if the user is running `nx sync --check`
+      options.check
+    );
     if (options.check) {
       output.error({
         title: 'The workspace is out of sync',
-        bodyLines: resultBodyLines,
+        bodyLines: [
+          ...resultBodyLines,
+          '',
+          'Run `nx sync` to sync the workspace.',
+        ],
       });

       if (anySyncGeneratorsFailed) {
