VCS Addons: histogram & polar

[chaosphere2112]

Fixes up the existing implementation of the vcsaddons histogram and adds a new plot type (Polar) to vcsaddons. The histogram came out of needs of the GUI, and the polar plot came from some visualization tasks I had been assigned. New baselines are at CDAT/uvcdat-testdata#138, here's the coverage summary for these two modules:

[chaosphere2112]

@aashish24 @doutriaux1 Please review, I want this in 2.6.

[doutriaux1]

@chaosphere2112 is merging @danlipsa revert commit branch going to affect this?

[doutriaux1]

@chaosphere2112 please merge master in

[chaosphere2112]

@doutriaux1 Merged, running tests now.

[chaosphere2112]

Looks good. Also, the commit from @sampsonbryce only made it so that calling x.plot(s, vcsaddon) worked, where in these tests I do vcsaddon.plot(s, x=x)

[aashish24]

nit pick: space before and after =

[aashish24]

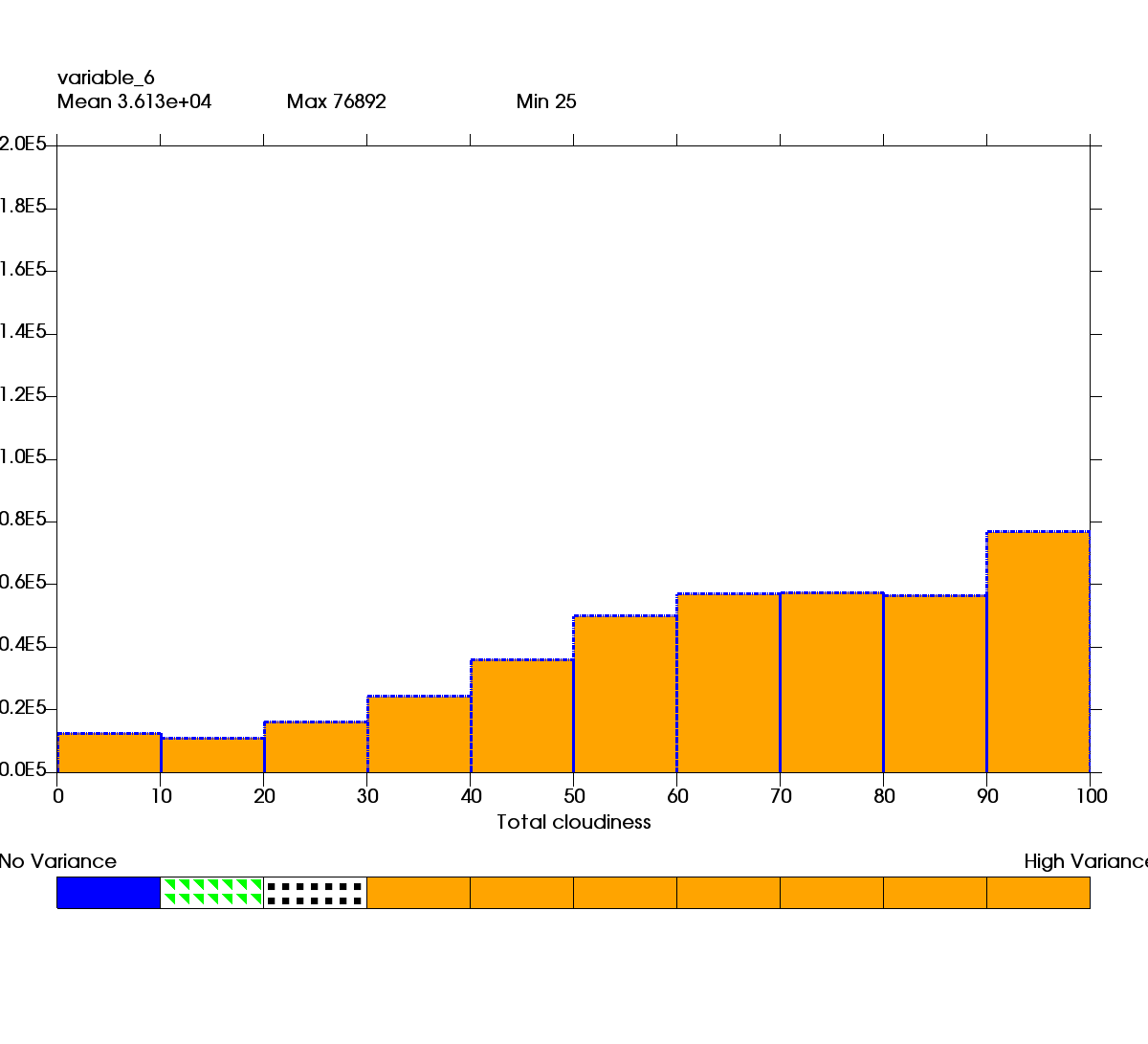

@chaosphere2112 does this image looks right to you:

https://raw.githubusercontent.com/UV-CDAT/uvcdat-testdata/ec8b357e7fe59ab96712279f406ac2c59b9a8b43/baselines/vcsaddons/test_vcs_addons_histogram_inherit.png

The pattern seems bit different

[aashish24]

Can we wrap these long lines please (that are > 120 column)

[aashish24]

@chaosphere2112 I did some basic check, couldn't verify all the math (specially the edge cases) but this seems like a nice addition. I just some very minor suggestions, please have look.

[chaosphere2112]

@aashish24 Updated style issues. The baseline you linked looks fine; if you're referring to the line stippling, the issue is just that the line stipples are overlapping (each bar has its own outline), so they look solid.

[aashish24]

Okay, thanks, LGTM now 👍 Do I need to build and test?

[chaosphere2112]

@aashish24 I ran the tests and they passed for me, but, probably 😉

[aashish24]

Okay running it now.

[aashish24]

@chaosphere2112 my build is done but couldn't finish the testing, will do it tonight.

[aashish24]

@chaosphere2112 for some reason I got more than expected test failures 😢. Let me look into it and I will ping you asap.

[aashish24]

@chaosphere2112 the baselines were not uptodate in the branch and thats why tests were failing. I am running the suite again.

[aashish24]

Also, I have merged the master baselines to this branch and running the tests again.

[aashish24]

these tests are failing but I am going to ignore dv3d and diag tests as they have been failing on master of this branch too.

40 - flake8_vcs (Failed)
60 - test_vcs_read_old_scr (Timeout)
62 - test_vcs_read_old_scr_2 (Timeout)
65 - test_vcs_no_extra_elements (Failed)
542 - dv3d_vector_test (Failed)
543 - dv3d_slider_test (Failed)
544 - Hovmoller_volume_test (Failed)
545 - dv3d_volume_test (Failed)
546 - dv3d_constituents_test (Failed)
547 - dv3d_surface_test (Failed)
548 - dv3d_hovmoller_test (Failed)
594 - CDMS_Test_multiple_formats (Failed)
606 - diags_test_02 (Failed)
607 - diags_test_03 (Failed)
608 - diags_test_04 (Failed)
609 - diags_test_41 (Failed)
610 - diags_test_05 (Failed)
611 - diags_test_06 (Failed)
612 - diags_test_07 (Failed)
613 - diags_test_08 (Failed)
614 - diags_test_09 (Failed)
615 - diags_test_10 (Failed)
616 - diags_test_11 (Failed)
617 - diags_test_12 (Failed)
618 - diags_test_13 (Failed)
619 - diags_test_15 (Failed)

Looking into other tests failure making sure that they are not related.

[aashish24]

@chaosphere2112 looks like polared_one broke one test:

57: Test command: /home/chaudhary/tools/uvcdat/build_debug/install/bin/runtest "/home/chaudhary/tools/uvcdat/build_debug/install/bin/python" "/home/chaudhary/tools/uvcdat/src.git/testing/vcs/test_vcs_no_extra_elements.py"
57: Environment variables:
57: UVCDAT_ANONYMOUS_LOG=no
57: Test timeout computed to be: 1500
57: PATH env variable reset
57: LD_LIBRARY_PATH env variable reset
57: DYLD_LIBRARY_PATH env variable reset
57: PYTHONPATH env variable reset
57: OPAL_PREFIX env variable reset
57: LIBOVERLAY_SCROLLBAR env variable reset
57: Successfully updated your environment to use UVCDAT
57: (changes are valid for this session/terminal only)
57: Version: v2.5.0-407-ga90268e
57: Location: /home/chaudhary/tools/uvcdat/build_debug/install
57: Reset these changes by running: source /home/chaudhary/tools/uvcdat/build_debug/install/bin/reset_runtime.sh
57: template ['polar_oned']
57: textorientation ['__textorientation_21042658900488']
57: line ['__line_320635056441535', '__line_957320724349839']
57: Traceback (most recent call last):
57: File "/home/chaudhary/tools/uvcdat/src.git/testing/vcs/test_vcs_no_extra_elements.py", line 35, in
57: raise Exception("New elements added when it shouldn't")
57: Exception: New elements added when it shouldn't
1/1 Test #57: test_vcs_no_extra_elements .......***Failed 1.64 sec

0% tests passed, 1 tests failed out of 1

Total Test time (real) = 1.68 sec

[chaosphere2112]

@aashish24 Ah, I could see that. I fixed the flake8 issue, I'll address the polar_oned thing.

[chaosphere2112]

Take another shot at it, @aashish24

[aashish24]

thanks @chaosphere2112 running the suite from scratch again with your latest changes.

[aashish24]

@chaosphere2112, apologies, I am pushing a fix since lot many tests were failing on my system. Also, I will open a PR against uvcdat branch.
