n8n on Azure Container Apps + Entra Agent ID

One-command deployment: n8n on Azure Container Apps with Entra Agent ID and Microsoft Graph MCP Server for Enterprise — fully automated from Azure Cloud Shell.

Prerequisites

Important: This is a demo oriented infrastrucure automation. It requires high privileges in your environment.

An Azure subscription with quota for Azure OpenAI (GPT-4o or similar), PostgreSQL Flexible server, Azure Container Apps.
Entra role: Global Administrator: this role is required because of the many entities created along with amdin consent to permissions. The automation will fail if you do not have active Global Administrator role.

Azure Cloud Shell (recommended) comes with everything pre-installed: Azure CLI, Azure Developer CLI (azd), PowerShell 7, and Git.

Running locally instead of Cloud Shell

Azure Developer CLI (azd) v1.9+
Azure CLI (az) v2.60+
PowerShell 7.4+
Microsoft.Entra PowerShell module v1.2+ — installed automatically if missing
Git

Log in before running:

az login
azd auth login

Then:

git clone https://github.com/astaykov/n8n-aca.git && cd n8n-aca && azd up

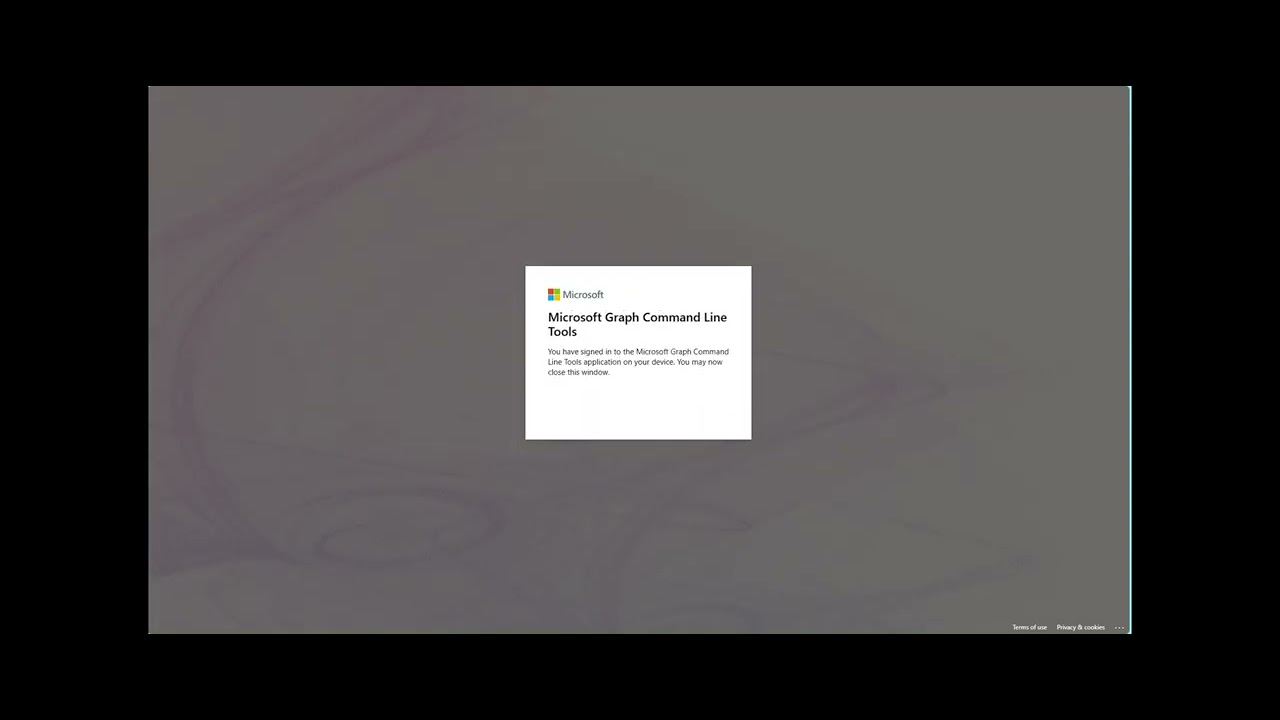

📺 Video walkthrough

Quick start (Azure Cloud Shell)

Open Azure Cloud Shell (PowerShell) and run:

git clone https://github.com/astaykov/n8n-aca.git && cd n8n-aca && azd auth login && azd up

In Azure Cloud Shell, azd auth login will display a device code — open the URL shown and enter the code to authenticate, then azd up continues automatically.

azd up will prompt you for:

Prompt	What to enter
Environment name	Any name (e.g. `my-n8n`) — used to isolate this deployment
Azure subscription	Select the subscription to deploy into
Azure location	Select a region (e.g. `northeurope`)
n8n admin email	Email for the n8n owner account
n8n admin password	Password for the n8n owner account (min 8 chars, mixed case, number)

After infrastructure deploys, the postprovision hook runs automatically:

Entra sign-in — a device code is displayed; open the URL and enter the code (Global Admin or App Admin required)
Creates Entra Agent ID objects (Blueprint, Agent Identity, Agent User)
Enables the Microsoft Graph MCP Server for Enterprise
Waits for n8n to become ready
Creates the owner account
Installs the @astaykov/n8n-nodes-entraagentid community node
Creates all 5 credentials with real values wired in
Imports 3 workflows with credential IDs already substituted
Activates trigger workflows

When complete, the script prints your n8n URL and a summary.

Tenant ID is auto-detected from your Azure login — no manual configuration needed.

What this deploys

Azure infrastructure

Resource	Purpose
Container Apps Environment	Hosts n8n and the test SPA
n8n Container App	Runs the official `n8nio/n8n` image with HTTPS ingress
Static Web App	Test SPA for the OBO webhook flow
PostgreSQL Flexible Server	Persistent store for workflows, credentials, executions (Burstable B1ms)
Storage Account + File Share	Persistent `/home/node/.n8n` — community nodes and config survive restarts
Azure OpenAI	GPT model deployment used by the AI agent workflows
Log Analytics Workspace	Diagnostics

Entra objects (created once, reused on re-runs)

Object	Purpose
Agent Identity Blueprint	App registration that issues tokens on behalf of Agent Identities via Federated Identity Credentials
Agent Identity SP	The AI agent's service principal — acquires Graph/MCP tokens autonomously
Agent User	Cloud-only user identity that enables delegated (OBO) token flows
SPA app registration	Client app for the webhook demo — pre-configured with redirect URIs and Blueprint API permission

n8n configuration (fully automated)

Everything below is applied automatically by the postprovision hook:

✓  Owner account created
✓  Community node installed  (@astaykov/n8n-nodes-entraagentid)
✓  API key generated
✓  5 credentials created with real values wired in
✓  3 workflows imported with credential IDs already substituted
✓  Trigger workflows activated

Credentials created:

Name	Type	Used for
`EntraAgentID - Autonomous`	`entraAgentIDApi`	App-only Graph API token (no user)
`EntraAgentID - Agent User OBO`	`entraAgentIDApi`	Delegated token on behalf of the Agent User
`Azure OpenAI - <deployment>`	`azureOpenAiApi`	LLM nodes in AI agent workflows
`AgentID Auth Manager - Access Token`	`httpHeaderAuth`	Token forwarding from Auth Manager to downstream nodes
`Bearer from AuthManager`	`httpBearerAuth`	Bearer token forwarding for MCP calls

Workflows imported:

Workflow	Description
`Agent ID Auth Manager - Agent User with MCP Enterprise`	Acquires a delegated MCP token for the Agent User and forwards it to a sub-workflow
`HTTP Request with autonomous agent token`	Demonstrates an autonomous agent calling Microsoft Graph directly with an app-only token
`webhook - assistive agent (on-behalf-of)`	Webhook entry point — receives a Bearer token from the SPA, calls the Auth Manager, and responds via the Graph MCP Server on behalf of the signed-in user

Deploy the test SPA (optional)

The test SPA is a static JavaScript app that demonstrates the OBO webhook flow from a browser. Deploy it after provisioning:

azd deploy spa

Re-running / idempotency

azd up is fully idempotent:

Azure resources that already exist are skipped by Bicep
Entra object IDs (Blueprint, Agent Identity, Agent User, Blueprint secret) are saved to the azd environment after the first run and reused on subsequent runs — no re-creation, no extra Entra sign-in prompts
n8n configuration (credentials, workflows) is applied fresh each run, which allows repairing a broken state

To re-run just the postprovision scripts without touching infrastructure:

azd provision   # Bicep detects no changes, runs hooks only

Running the scripts manually

The postprovision hook calls two scripts that can also be run standalone.

Full end-to-end (Entra + n8n)

.\scripts\Run-All.ps1 `
    -TenantId  "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" `
    -N8nUrl    "https://ca-n8n-<token>.northeurope.azurecontainerapps.io"

n8n configuration only (no Entra)

.\scripts\Configure-N8n.ps1 `
    -N8nUrl          "https://ca-n8n-<token>.northeurope.azurecontainerapps.io" `
    -OwnerEmail      "admin@contoso.com" `
    -OwnerPassword   "MyStr0ngPassword!"

Entra setup only

.\scripts\Setup-EntraAgentId.ps1 `
    -TenantId  "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" `
    -N8nUrl    "https://ca-n8n-<token>.northeurope.azurecontainerapps.io"

Architecture

                         ┌──────────────────────────────────────────────┐
Browser / SPA ──HTTPS──► │  webhook - assistive agent (on-behalf-of)    │
                         │                                              │
                         │  ① receive Bearer token from SPA            │
                         │  ② call Auth Manager workflow               │
                         │     └─ Blueprint creds ──FIC──► AgentID SP  │
                         │            └──OBO──► Agent User token        │
                         │  ③ call Graph MCP Server with Agent token    │
                         └────────────────────────┬─────────────────────┘
                                                  │ MCP (delegated token)
                                                  ▼
                                 ┌──────────────────────────────┐
                                 │  Graph MCP Server            │
                                 │  mcp.svc.cloud.microsoft     │
                                 └──────────────────────────────┘

                         ┌──────────────────────────────────────────────┐
                         │  HTTP Request with autonomous agent token     │
                         │                                              │
                         │  Blueprint creds ──FIC──► AgentID SP         │
                         │                    └──► app-only Graph token  │
                         └────────────────────────┬─────────────────────┘
                                                  │ REST (app token)
                                                  ▼
                                 ┌──────────────────────────────┐
                                 │  Microsoft Graph API         │
                                 │  graph.microsoft.com         │
                                 └──────────────────────────────┘

Component	Description
Agent Identity Blueprint	App registration that acts as a token factory — issues tokens for Agent Identities without storing credentials on the agent
Agent Identity SP	Service principal with no credentials; Blueprint acquires tokens on its behalf via Federated Identity Credentials
Agent User	Cloud-only digital employee; enables delegated OBO flows with user-level Graph and MCP access
Auth Manager node	n8n community node that manages token acquisition and AES-256-GCM caching per workflow run
Graph MCP Server for Enterprise	Microsoft-hosted MCP endpoint (`https://mcp.svc.cloud.microsoft/enterprise`) that translates MCP tool calls into Microsoft Graph API requests

MCP Server scopes granted

The setup grants the following delegated MCP.* scopes to the Agent Identity SP:

Scope	Allows
`MCP.User.Read.All`	Read all users
`MCP.Organization.Read.All`	Read tenant org info
`MCP.Group.Read.All`	Read all groups
`MCP.GroupMember.Read.All`	Read group memberships
`MCP.Application.Read.All`	Read app registrations and service principals
`MCP.AuditLog.Read.All`	Read sign-in and audit logs
`MCP.Reports.Read.All`	Read M365 usage reports
`MCP.Policy.Read.All`	Read conditional access policies
`MCP.Domain.Read.All`	Read verified domains
`MCP.Device.Read.All`	Read Entra-registered devices

To add more scopes, edit the $MCP_SCOPES array in scripts/Setup-EntraAgentId.ps1 and re-run azd provision.

MCP.* scopes mirror their Graph counterparts (e.g. MCP.User.Read.All ↔ User.Read.All). The MCP Server only supports delegated permission flows — use the autonomous credential for app-only Graph calls.

Cost estimate

Resource	Configuration	Est. monthly
n8n Container App	1 vCore, 2 GiB	~$15
Static Web App	Free tier	$0
PostgreSQL Flexible Server	Burstable B1ms	~$12
Azure OpenAI	Pay-per-token (GPT-4o)	varies
Storage Account	LRS, < 1 GB	~$1
Log Analytics	Pay-as-you-go	~$2
Total (ex. OpenAI)		~$30/month

Cleanup

azd down --purge

This removes all Azure resources. Entra objects (Blueprint app, Agent Identity, Agent User) are not deleted automatically — remove them manually in the Entra portal if no longer needed.
