Allow Custom CSS

[aliabid94]

This PR allows CSS control both at a page level and a per-component level. For the page level, the css= kwarg has been restored, which takes an arbitrary string of CSS, along with elem_id Component attribute that adds an element id to any component. For the Component level, I've introduced a gr.style function that will allow us to provide controlled styling control that also will allow targeting specific nested components.

Take a look at the example code below (from demo/blocks_simple_squares/run.py):

import gradio as gr

test = gr.Blocks(css="#btn {color: red}")

with test:
    num = gr.Variable(value=0)
    squared = gr.Number(value=0).style(text_color="blue", container_bg_color="yellow")
    btn = gr.Button("Next Square", elem_id="btn").style(rounded=False, bg_color="purple")

    def increase(var):
        var += 1
        return var, var**2

    btn.click(increase, [num], [num, squared])

test.launch()

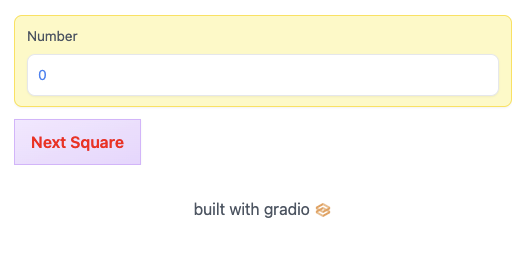

which renders

[abidlabs]

Interesting! I like that it allows you to apply css styles directly but also take advantage of type hints. Some thoughts:

• The parameters that gr.CSS accepts -- don't they vary significantly from one component to another, particularly if you included the nested elements? For example, Image would accept editButtonCss, but Textbox would not?

So in addition to what you are saying, perhaps every component that needs to can define its own inner class CSS() with the parameters that make sense for it. Something like:

class Image():
   class CSS(gr.CSS):
      def __init__(editButtonCss=None, **kwargs)
      ....

And then you would do: gr.Image(css=gr.Image.CSS(editButtonCss=...))

• I think Blocks should also take a gr.CSS or gr.Blocks.CSS or whatever instead of an arbitrary global string, because a Blocks can be a block in another Blocks

[aliabid94]

What you're saying makes sense. We could implement as you suggested, or how about this:

gr.Image(type="pil"...).css(
    gr.CSS(border="solid 2px pink", height="12rem"),
    edit_button=gr.CSS(backgroundColor="gray"),
)

In this approach, no more nesting, and only one gr.CSS class. There is a CSS method to each component, and each component adds kwargs for each possible target. Type hints available at every step.

[abidlabs]

Nice, that's pretty clean

[pngwn]

If we did the css variables approach, users would be limited in the supported nested CSS they could modify

This is a feature not a bug. It means we can pretty much guarantee that components will always work as expected. There is already an escape hatch in the global CSS (readded in this PR). We could easily add an id kwarg to components (which would be added tot he container as an id attribute) so users can target specifics from above, it is coarse but at least it has 'escape hatch' written all over it. An explicit API is tacit endorsement of this kind of restyling.

I personally don't like this approach due to how much it exposes and how little control we have. A first-class API for changing every css property means we explicitly support this (and we will need to provide support to people having CSS issues).

I also don't like the fact that this design uses the js property camelcased notation which will not be familiar to users who have a passing familiarity with CSS but little JS knowledge (the camel -> kebab conversion is frequently confusing for js devs). It will also be confusing when users look up css properties and need to convert them to camel case.

[pngwn]

I also don't think css editButtonCss kwargs scales particularly well, we already have a lot of kwargs; these should all be together.

Additionally, even quite granular concepts like 'edit button' are frequently made up of multiple elements. Something like a clear button on an image might be made up of 2 or 3 elements. A wrapper div might handle margins/spacing, a button might handle borders, shadows, radiuses; and a final element (svg perhaps) might handle the actual icons, line colors, line width, image size/ margins, etc. Even the granularly targeted CSS kwarg cannot address this. We could need several. And this is just one small thing. The media components have several buttons, a container, the core component itself, the upload functionality, the empty inner text (two kinds). We would need at least half a dozen targetted css kwargs, with each kwarg needing several more to actually be useful.

This approach also means that any minor changes we make to the structure of the markup are essentially breaking changes. We will be stuck between not making changes to the markup (which is an implementation detail) or frequently breaking user-provided CSS. Something that we have had feedback about in v2 and wanted to avoid in v3.

[aliabid94]

I see. So what you're suggesting is:

1. Keep the global Blocks level css= kwarg that accepts arbitrary strings
2. Add class names to most elements to allow custom CSS manipulation through this global CSS
3. Add a tightly controlled style kwargs to each component where we specify the manipulatable styles for each component through a Python API.
   Correct?

Btw there's not good supported type-hinting within dictionaries in Python. So

input_style = {
  input: {
    border_radius: [ True, False, False, True ],
    margin: [True, False, True, True]
  }
}

button_style = {
  border_radius: [ False, True, True, False ],
  margin: [True, True, True, False]
}

with gr.Blocks() as blocks:
  with gr.Group():
    with gr.Box():
      with gr.Row():
        txt = gr.Textbox(label="prompt", show_label=False, container=False, style=input_style)
        btn = gr.Button(label="Run", style=button_style)
    img = gr.Gallery()

  btn.click(fn, inputs=[txt], outputs=[img])

would not provide any type-hinting from the style= kwarg. That's why I was suggesting an extra method with kwargs, e.g.

with gr.Blocks() as blocks:
  with gr.Group():
    with gr.Box():
      with gr.Row():
        txt = gr.Textbox(label="prompt", show_label=False, container=False).style(border_radius=[True, True, True, True], margin=[True, True, True, False])
        btn = gr.Button(label="Run").style(border_radius=[True, True, True, True], margin=[True, True, True, False])
    img = gr.Gallery()

  btn.click(fn, inputs=[txt], outputs=[img])

[pngwn]

I don't really mind what the specific API is really, I just think it should be an abstraction so we have some control over a) what we allow, and b) what we do with it. That alongside an escape hatch should give us the flexibility to allow some custom styling without exposing implementation details but still allow users to hack on the CSS if they really want to.

In terms of accessing the components more directly, I'd propose adding a standard class for each component. This would be applied to the the highest level wrapper, all Buttons would have .button and so on.

We could also allow users to pass an options id which would apply only to that instance iof the component (although i'm undecided on this, i'd probably leave this off for now).

But even with just the classes, user's would have enough of an escape hatch to do almost anything without us 'blessing' it with an official API. We can document it as an escape hatch and make no promises about not breaking user's CSS.

I think my main motivation here is to keep this as light touch as possible until we see where the limitations are. A granular API, with only a few things exposed is something we can release + test. If it works well we can look at use-cases and decide what else to add. If it doesn't work well or isn't useful we can pause there without any great harm. Exposing everything by default is more difficult to walk back and would require a 4.0.

[pngwn]

Regarding the API, a fluent interface strikes me as a little odd in gradio (do we use that pattern anywhere else?) but I'm not against it. I'd be fine with a style=gr.Style() or .style() really. I think we should go with style over something like css just to drive home that it is generic rather than a 1 for 1 with css. But i'm fine if we match our property/ kwarg names with CSS names to make the API easier to learn.

[pngwn]

This looks good and the PR comments capture my feedback mostly, but we need to avoid passing the CSS down directly to elements as raw CSS for a few reasons.

• Firstly, it makes breakages more likely (we use lots of flex and absolute positioning, it would be very easy to break layouts and we want to stay in control, gradio apps should almost always render correctly when using style kwargs)
• Secondly, it won't actually be enough to style some things. When we receive certain css properties we may actually need to modify multiple elements not just one, so simply passing down style strings to elements won't always be enough to achieve the desired outcome. If we wanted to solve this propblem, we would have to expose implementation details in order to give the desired result.
• Finally, we lose flexibility in how we apply the options. We may want to use (or remove) certain tw classes for certain style arguments but we can't do that if we are just passing CSS down.

I'm also nto a huge fan of mapping gr.CSS classes to elements for the reasons we discussed above. I think a nested API is fine but that nesting shouldn't map to specific elements, but specific semantic concerns. For example a component might have a button, a label, and an 'input', conceptually, but passing values into those CSS objects should not map to individual elements. I don't think that really gives enough flexibility.

Also can you explain the API in more detail? I don't under what an array of gr.Styles would do.

[pngwn]

I don't think we should do these conversions here, it gives us less flexibility on the frontend in how we actually process the styles. We would find it difficult to add tailwind classes in resposne to some style arguments, for example. We don't want to be passing all css properties down to the elements. I would just send the kawrg contents as is, so we can decide what do with it. In some cases that will be a style attribute but it might not always be.

[pngwn]

Similar to the comments above, we don't want to just pass everything down to the element. We want an explicit interface like label_bg etc. It would be really easy to break layouts with arbitrary CSS. I would just make the record available to each component and let it decide how the CSS is handled.

Keeping this interface constrained and gradually opening it up makes more sense to me in terms of ensuring gradio Apps always look good. Theming should be where we really let people customise the general look and feel (when we figure out how we'll be doing that).

[pngwn]

Awesome work!

[kingabzpro]

I think .css() was the better way to add customization. The Chatbot box size is auto set. I wanted to reduce the size but .style() had limited options. I can work with borders and padding but not size?
