Description

Fixes #1804

There are two problems that I found:

  1. When source="upload", the front-end was flipping videos since mirror_webcam is always set to True in the config. Regardless of whether the source is a webcam. This is the problem causing Video mirroring #1804.
  2. When the source is webcam and the format is specified (not None), the video was not flipped in the backend. There isn't an issue about this filed I think.

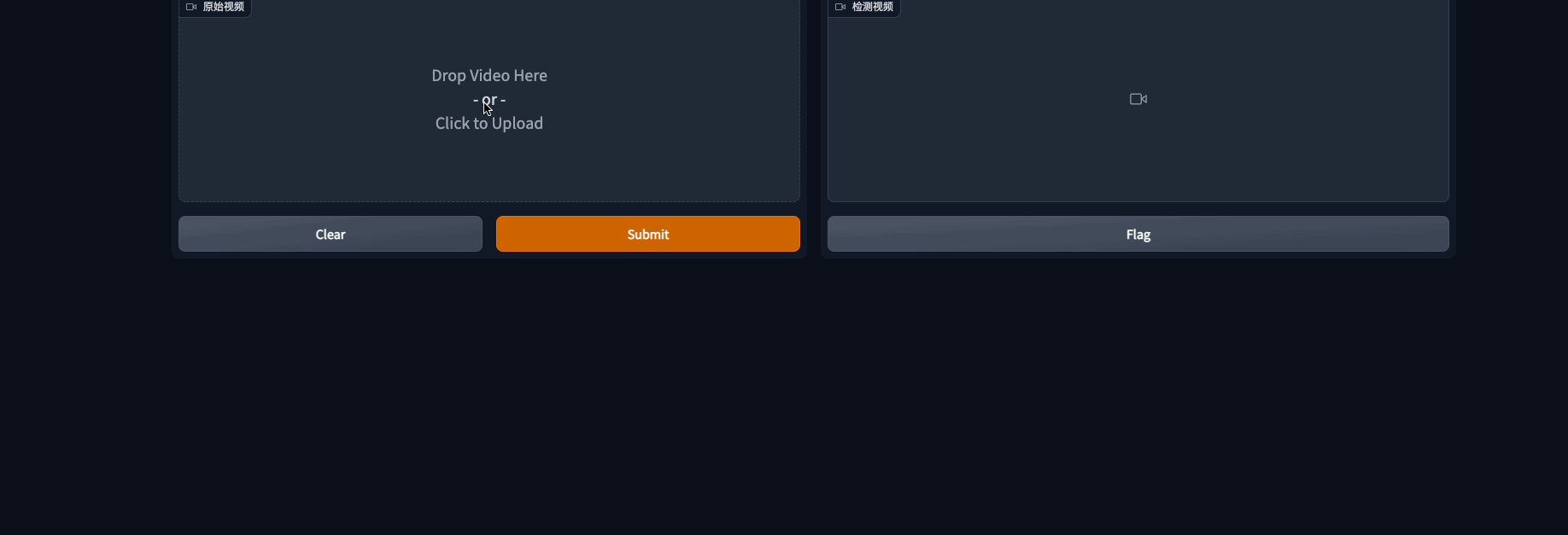

Issue 1 Test code

import gradio as gr

def video_test(video):
    return video

inputs_video_p5 = gr.Video(format="mp4", source="upload", label="原始视频")  # webcam
outputs_webcam_p5 = gr.Video(format='mp4', label="检测视频")

gyd = gr.Interface(
    fn=video_test,
    inputs=[inputs_video_p5],
    outputs=[outputs_webcam_p5],
)
gyd.launch(
    inbrowser=True,
)

no_flip_if_upload

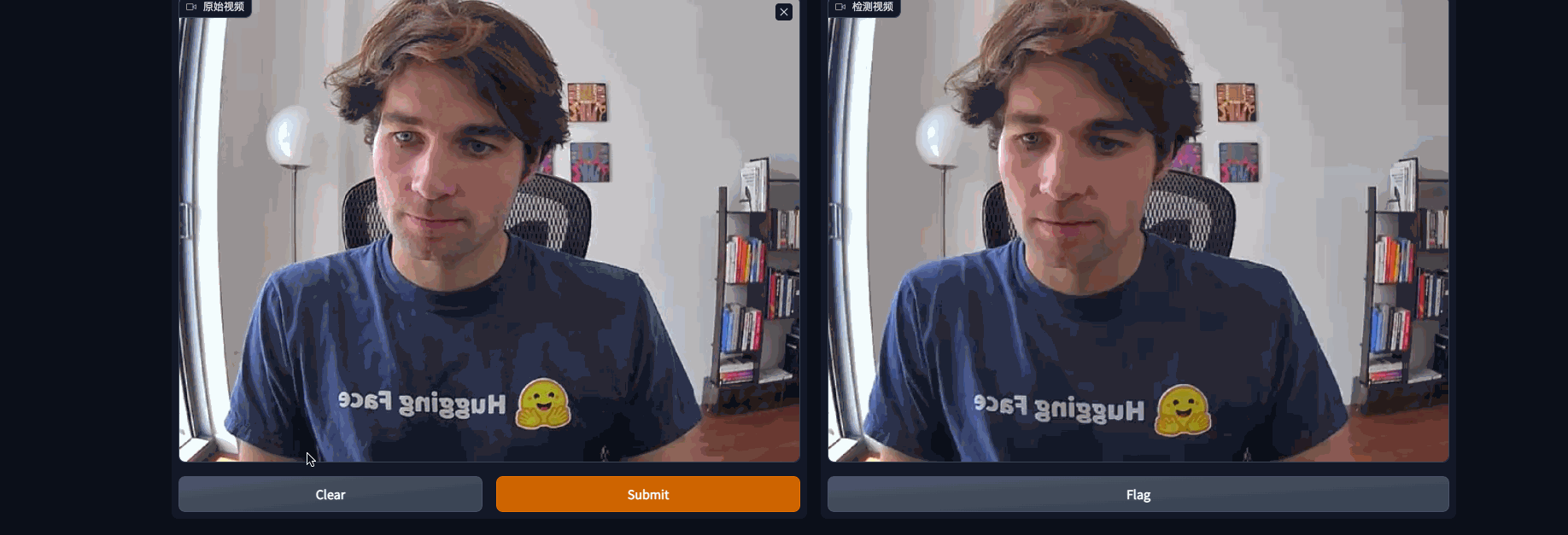

Issue 2 Test Code

import gradio as gr

def video_test(video):
    return video

inputs_video_p5 = gr.Video(format="mp4", source="webcam", label="原始视频")  # webcam
outputs_webcam_p5 = gr.Video(format='mp4', label="检测视频")

gyd = gr.Interface(
    fn=video_test,
    inputs=[inputs_video_p5],
    outputs=[outputs_webcam_p5],
)
gyd.launch(
    inbrowser=True,
)

video_mirrored_if_format_change

Checklist:

  • I have performed a self-review of my own code
  • I have added a short summary of my change to the CHANGELOG.md
  • My code follows the style guidelines of this project
  • I have commented my code in hard-to-understand areas
  • I have made corresponding changes to the documentation
  • I have added tests that prove my fix is effective or that my feature works
  • New and existing unit tests pass locally with my changes

A note about the CHANGELOG

Hello 👋 and thank you for contributing to Gradio!

All pull requests must update the change log located in CHANGELOG.md, unless the pull request is labeled with the "no-changelog-update" label.

Please add a brief summary of the change to the Upcoming Release > Full Changelog section of the CHANGELOG.md file and include
a link to the PR (formatted in markdown) and a link to your github profile (if you like). For example, "* Added a cool new feature by [@myusername](link-to-your-github-profile) in [PR 11111](https://github.com/gradio-app/gradio/pull/11111)".

If you would like to elaborate on your change further, feel free to include a longer explanation in the other sections.
If you would like an image/gif/video showcasing your feature, it may be best to edit the CHANGELOG file using the
GitHub web UI since that lets you upload files directly via drag-and-drop.

@github-actions
Copy link
Copy Markdown
Contributor

All the demos for this PR have been deployed at https://huggingface.co/spaces/gradio-pr-deploys/pr-2475-all-demos

Comment thread gradio/components.py Outdated
Copy link
Copy Markdown
Collaborator Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Consolidating the two FFmpeg calls into one.

@freddyaboulton freddyaboulton force-pushed the 1804-fix-video-mirroring branch from 1aa3ba6 to 2013aa9 Compare October 17, 2022 21:04
@freddyaboulton freddyaboulton marked this pull request as ready for review October 17, 2022 21:04
@pngwn
Copy link
Copy Markdown
Member

pngwn commented Oct 17, 2022

Code looks good but I could never reproduce this, so will leave for someone else to test. It works fine for me, but it always did.

Comment thread gradio/components.py Outdated
uploaded_format = file_name.suffix.replace(".", "")

modify_format = self.format is not None and uploaded_format != self.format
flip = self.source == "webcam" and self.mirror_webcam is True
Copy link
Copy Markdown
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Nit:

Suggested change
flip = self.source == "webcam" and self.mirror_webcam is True
flip = self.source == "webcam" and self.mirror_webcam

Comment thread gradio/components.py Outdated
flip_suffix = "_flip" if flip else ""
output_file_name = str(
file_name.with_name(
f"{file_name.name.replace(file_name.suffix, '')}{flip_suffix}{format}"
Copy link
Copy Markdown
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Would this work?

Suggested change
f"{file_name.name.replace(file_name.suffix, '')}{flip_suffix}{format}"
f"{file_name.stem}{flip_suffix}{format}"

Copy link
Copy Markdown
Collaborator Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Yes!

@abidlabs
Copy link
Copy Markdown
Member

Looks awesome @freddyaboulton!

@freddyaboulton
Copy link
Copy Markdown
Collaborator Author

Thanks for the review all!

@freddyaboulton freddyaboulton merged commit dae17bb into main Oct 18, 2022
@freddyaboulton freddyaboulton deleted the 1804-fix-video-mirroring branch October 18, 2022 15:07
