Lean 4 Bundle Builder

Create self-contained, offline Lean 4 bundles for teaching.

Students download a zip, unpack it, double-click "Start_Lean", and get a working editor with no installation, no network access, and no command line needed.

What it looks like

CI runs Playwright GUI smoke tests on all supported platforms and publishes screenshots to GitHub Pages.

	Linux x64	Linux arm64	macOS	Windows

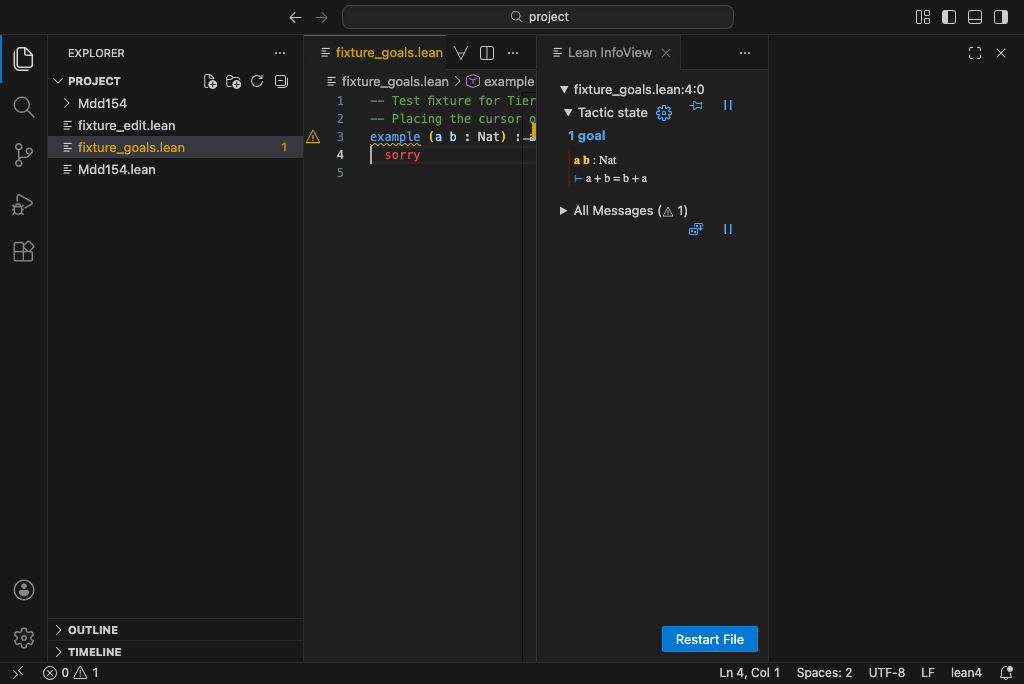

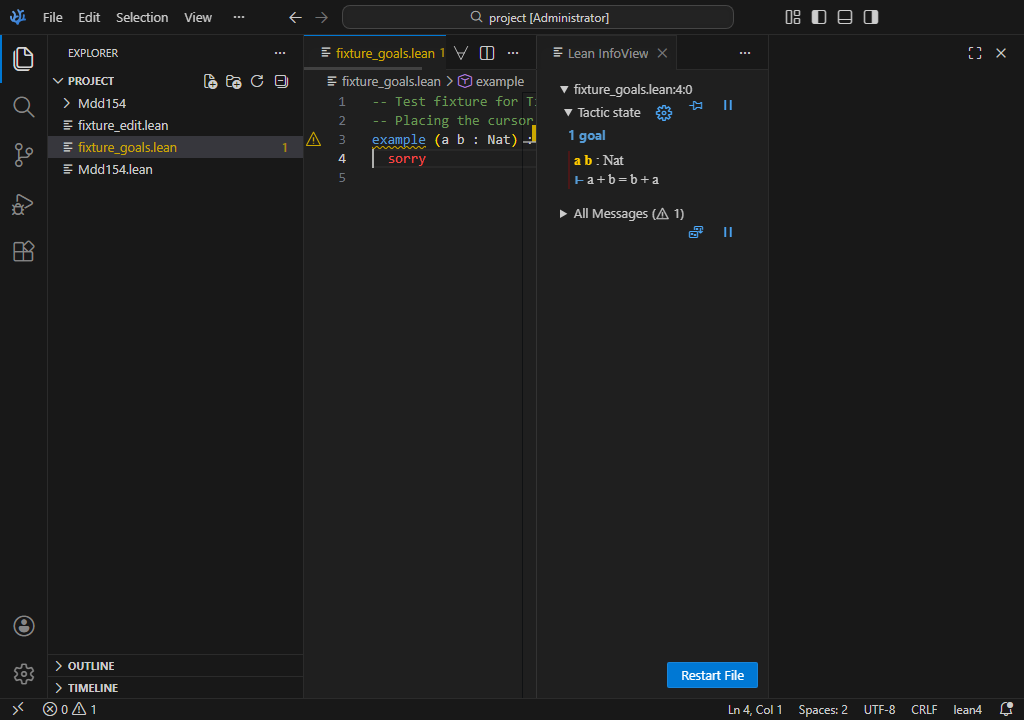

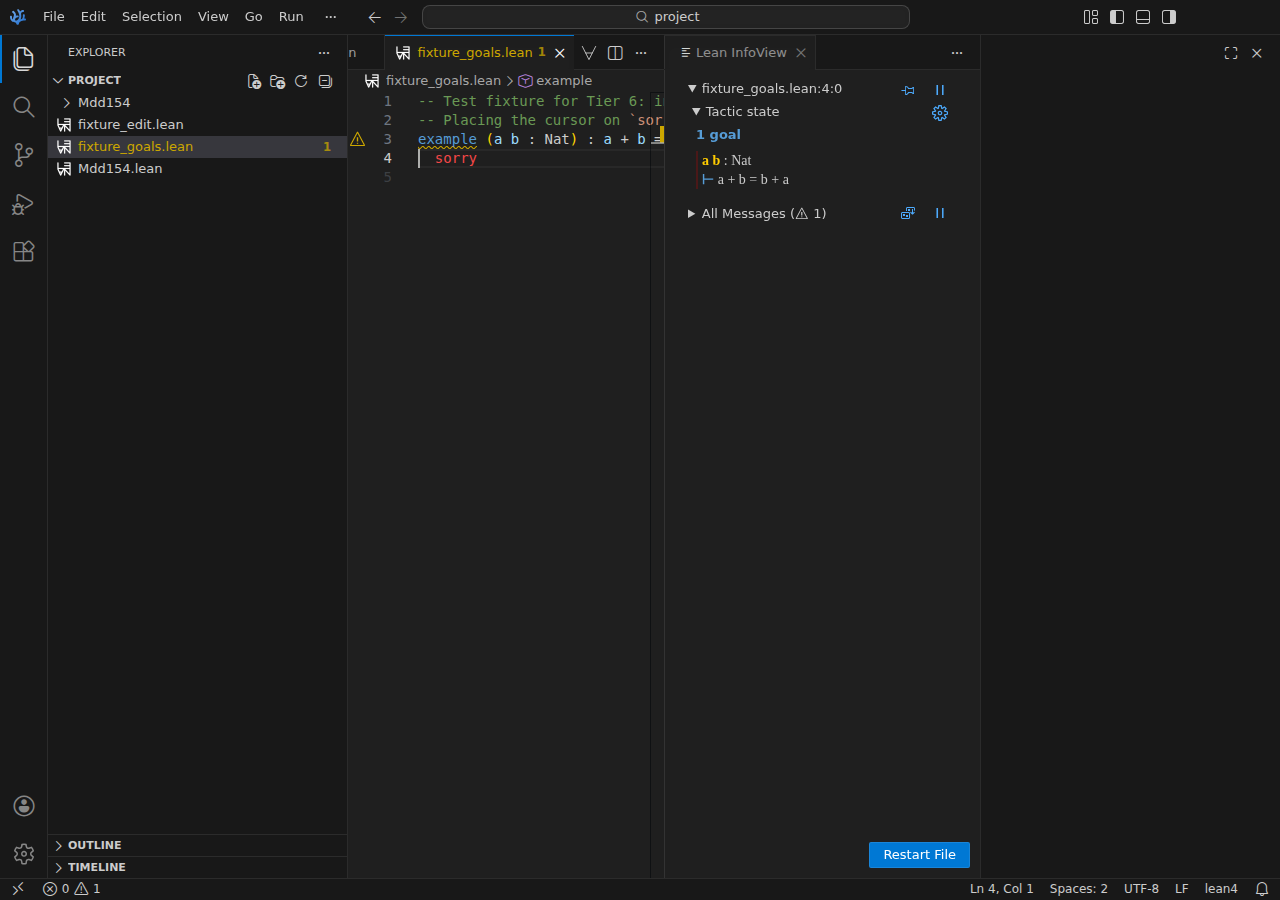

Infoview

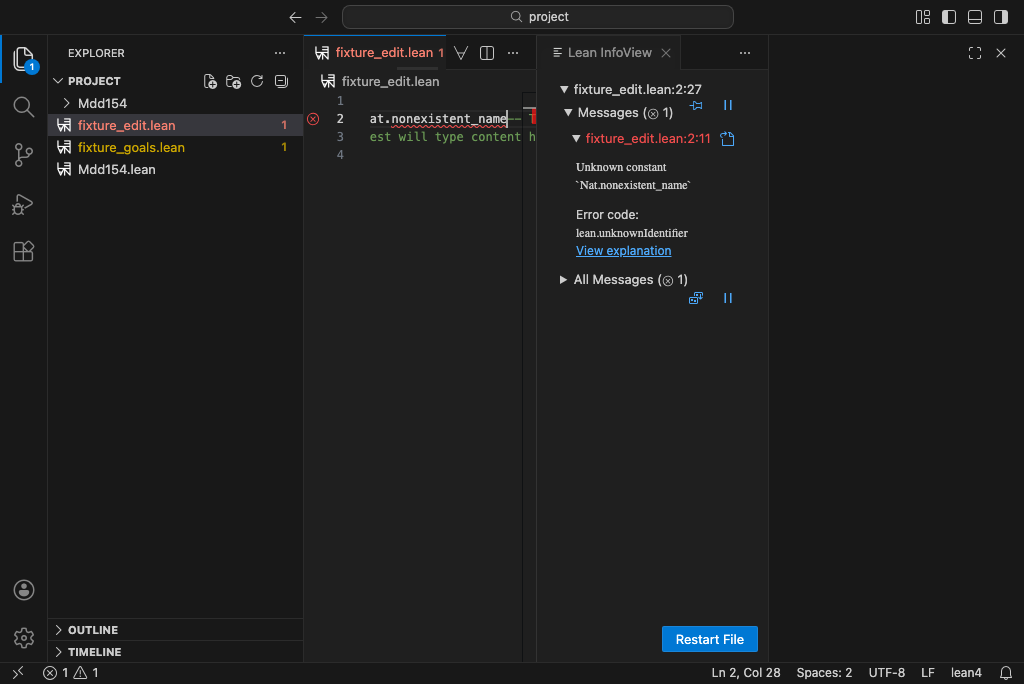

Diagnostics

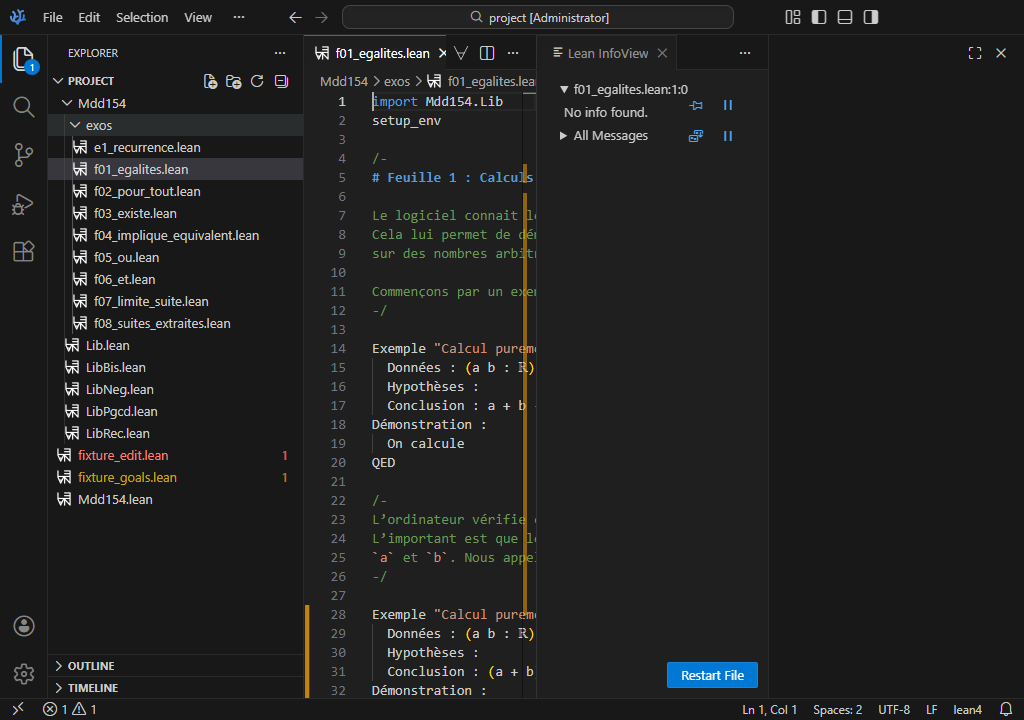

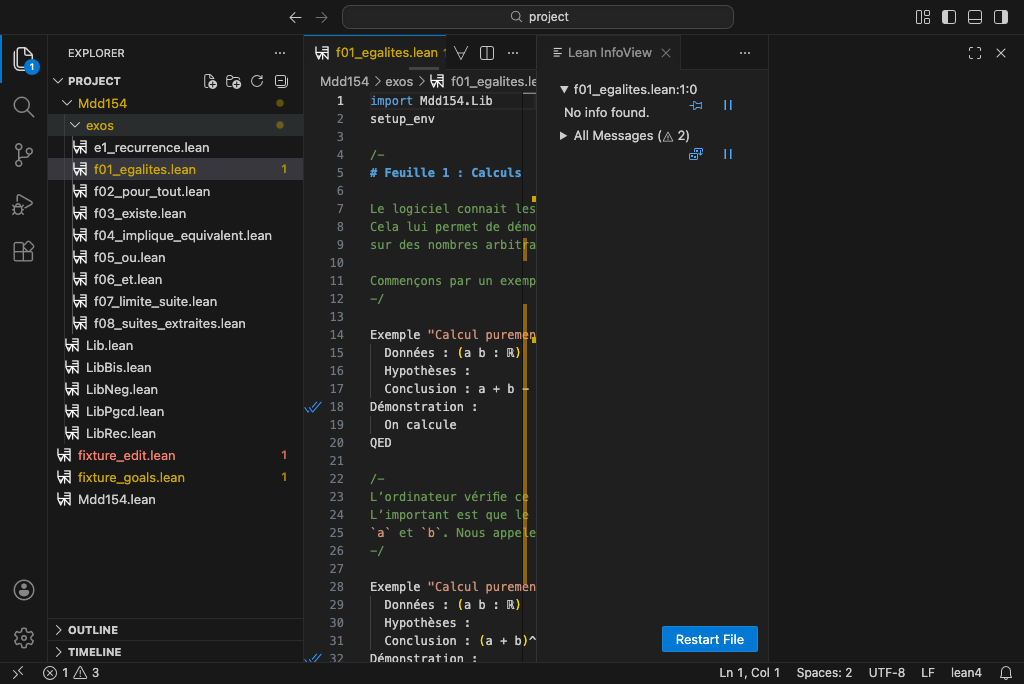

Project

Usage

python bundle.py https://github.com/PatrickMassot/MDD154 --platform windows

This produces MDD154-bundle-windows.zip containing:

• VSCodium (portable mode) with the lean4 extension pre-installed
• Lean 4 toolchain (trimmed to essentials)
• A tiny git.exe shim (~10 KB) to satisfy the lean4 and built-in git extensions' startup probes without shipping a full git install
• The project source files
• Only the oleans transitively needed by the project (not all of Mathlib)

Requirements (build machine only)

• Python 3.11+
• Git
• elan with the project's Lean toolchain
• Lean 4.17+ (for lean --src-deps)
• Network access (to download components and mathlib cache)
• A C compiler able to produce 64-bit Windows PE binaries when building Windows bundles (mingw-w64 is recommended; apt-get install gcc-mingw-w64-x86-64 on Debian/Ubuntu). Zig or native gcc/clang on a Windows build host also work.

Students need none of these.

Options

--platform {windows,linux-x64,linux-arm64,darwin-x64,darwin-arm64}
    Target platform (default: auto-detect)

--output PATH
    Output zip file path

--project-dir PATH
    Use an already-cloned and built project instead of cloning fresh

--work-dir PATH
    Working directory for downloads (default: temp dir)

--vscodium-version VERSION
    Pin VSCodium version (default: latest)

--extension-version VERSION
    Pin lean4 extension version (default: latest)

--no-zip
    Assemble the bundle directory without creating a zip

Example: pre-built project

If you've already cloned and built the project:

python bundle.py https://github.com/PatrickMassot/MDD154 \
    --project-dir /path/to/MDD154 \
    --platform windows

What's in the bundle

MDD154-bundle/
  Start_Lean.command/.cmd/.sh  # Double-click to launch (one per platform)
  lean/                       # Trimmed Lean toolchain
  vscodium/                   # Portable VSCodium + lean4 extension
  project/                    # Course project
    lakefile.toml
    lean-toolchain
    Mdd154/*.lean             # Student exercises
    .lake/
      build/lib/lean/         # Project oleans
      packages/               # Pruned dependency oleans + sources

How it works

1. Clones the target project and builds it (fetching mathlib cache)
2. Downloads VSCodium portable and the lean4 extension
3. Uses lean --src-deps to compute the transitive import closure
4. Copies only the needed modules' build artifacts (.olean, .ilean, etc.) into the bundle, skipping the thousands of Mathlib modules that aren't transitively imported
5. Trims the Lean toolchain (removes clang, LLVM, ~500 MB saved)
6. Creates a launcher script that sets PATH, LEAN_PATH, ELAN_HOME
7. Packages everything into a zip

Testing

Run all tests locally against an existing bundle:

./test.sh /path/to/MDD154-bundle

This runs unit tests, bundle structure verification, launcher tests, and Playwright GUI tests (requires Xvfb). Build a bundle first with:

python bundle.py https://github.com/PatrickMassot/MDD154 --platform linux-x64 --no-zip --work-dir /tmp/bundle-local
./test.sh /tmp/bundle-local/MDD154-bundle

Known issues

• Git shim on Windows. The lean4 VS Code extension and VS Code's built-in git extension both probe for git on PATH at startup. Rather than shipping the full 46 MB MinGit distribution, the bundle includes a ~10 KB C shim at git/cmd/git.exe that answers only the two probes both extensions make at activation: git --version (returns git version 2.47.0) and git rev-parse --show-toplevel (returns "not a git repository"). Lake's own git calls are optional fallbacks (captureProc?/testProc) and also tolerate the shim's non-zero exits. Source: shim/git_shim.c. This can be retired entirely once the lean4 extension provides a way to suppress its git check (Zulip discussion) and VS Code's built-in git extension is disabled via settings.json — whichever probe comes last determines whether the shim stays.

• Dep rewriting for offline use. We rewrite lake-manifest.json and lakefile.toml/lakefile.lean to convert git dependencies to path dependencies so lake doesn't try to run git. This can be removed once lake supports an offline mode (lean4#13101).

Pinned versions

Several component versions are hardcoded and need periodic bumps:

Component	Where	Notes
git shim version string	shim/git_shim.c (VERSION_LINE)	Must be >= 2.0.0, not 2.25.x/2.26.x
even-better-toml extension	download.py ALLOWED_EXTENSION_DEPS	ID + version
elan installer	.github/workflows/build-and-test.yml	Tag in curl URL
GitHub Actions (checkout, setup-python, etc.)	.github/workflows/build-and-test.yml	Pinned by commit SHA

The Lean toolchain version comes from the target project's lean-toolchain file and is not pinned here. VSCodium and the lean4 extension default to the latest release but can be pinned per-build via --vscodium-version and --extension-version.

License

Apache 2.0
