UI: Lineage Graph display mode enhancements

[howardyoo]

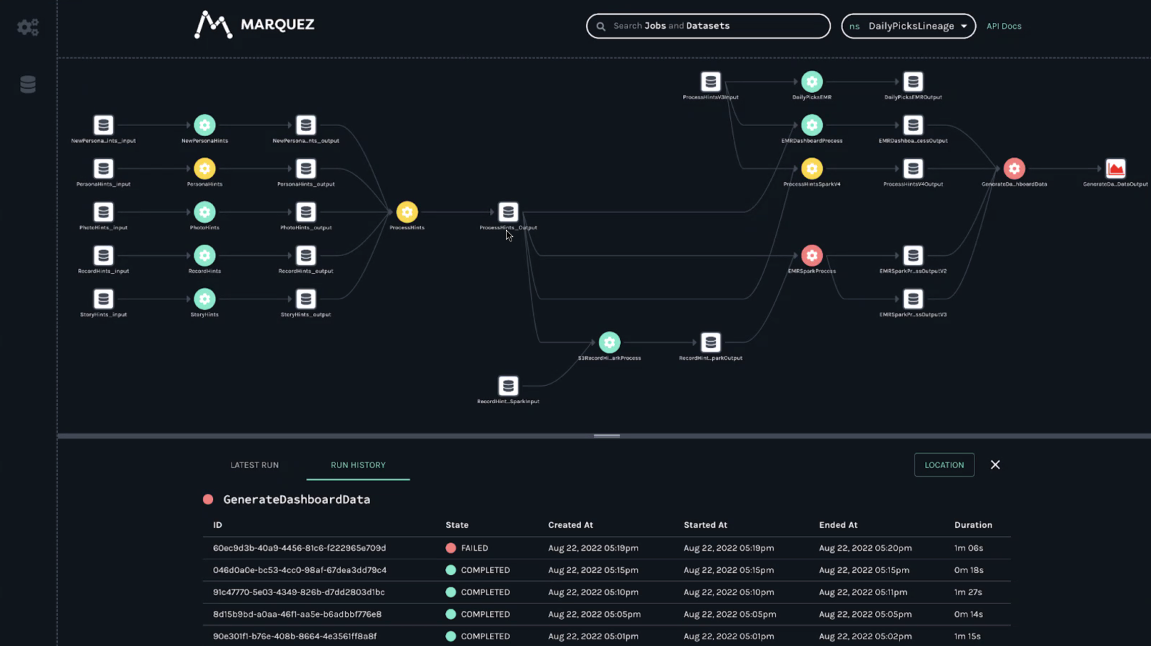

• Display and highlight various status of the jobs / datasets.

  • Failed jobs / datasets having quality failures should be displayed as 'RED' color.
  • jobs / datasets that have ran successfully / having quality issue but have failures in the past should be displayed as 'YELLOW' color. How do we determine that? A rule of thumb should be the last 14 runs.

• Highlight selected Job / dataset

  • Make the highlight more pronounced, so that when selected, it stands out in the graph (border glow? that may be a good idea)

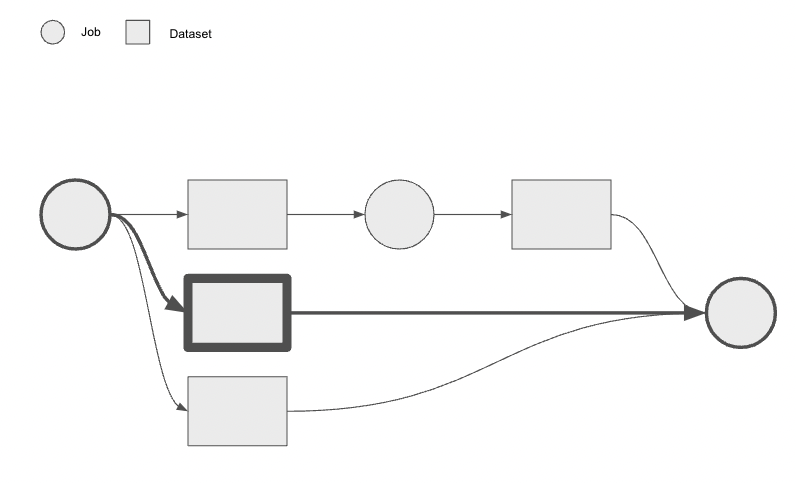

  • Highlight on the lineage path - both on upstream and downstream. So, if a dataset is selected,

    Notice how a simple highlight can better visualize how this dataset in question is 'selected', but also its upstream and downstream dependencies in the graph.

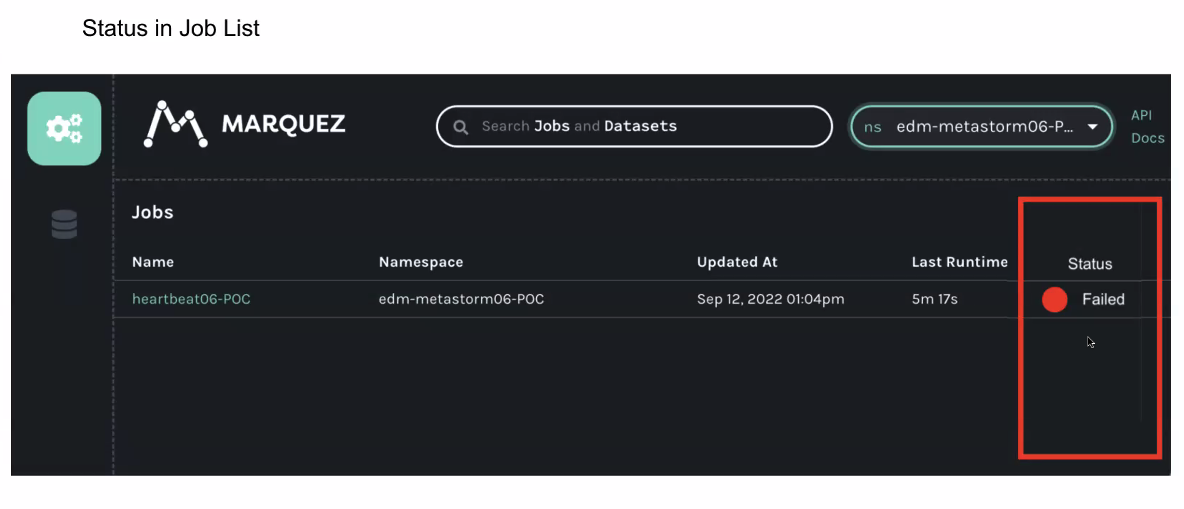

• Display job and dataset status on the search page. The same rule applies - that we mentioned in the first item above, that job currently in failed state should have red color, while job that previously had a failure, in yellow color (last 14 runs based). Anything other, green as a grass. Similar applies to data quality, where if the dataset's quality rules have violations, RED, past violations, Yellow, no violations - green.

  •

[howardyoo]

Thanks!!
