Resolve Gallery base64 representation issues

[proxyphi]

Description

Resolves performance issues caused by base64 image representation in gr.Gallery and gr.Image.

Changes include:

• Updating Gallery.postprocess and Image.postprocess to store and serve tempfiles of images, in-line with how Audio and Video components are implemented
• Updating Gallery.svelte and Image.svelte UI components to handle FileData.
• Slight refactor of normalise_file in ui/packages/upload/utils.ts: broke out array case handling into new normalise_files function.
• Updated test_static to expect filepath instead of base64 encoding.

Opening this as a draft PR since I had been working on it the past few days, and noticed #2262 getting posted, so I thought it might be of use ☺️

It does go beyond the original scope of the issue and serves Images as well, as I had run into severe performance issues on mobile when working with images beyond 1024x1024.

Closes: #2262

Checklist:

• I have performed a self-review of my own code
• My code follows the style guidelines of this project
• I have commented my code in hard-to-understand areas
• I have made corresponding changes to the documentation
• I have added tests that prove my fix is effective or that my feature works
• New and existing unit tests pass locally with my changes

[abidlabs]

Awesome, thank you so much for the PR @proxyphi! It looks like this is basically ready, right? If so, we can take look at why the tests are failing and fix that up.

Thanks again!

[proxyphi]

Hello! This is mostly ready, yes. I believe a couple of tests are breaking due to the move from Image and Gallery's postprocess functions now returning a dict ({name, data, is_file}) with tempfile information, instead of a b64 string.

I can only see one test, test_static from test_components breaking when I run tests locally, though it seems like another is breaking on CircleCI from the external tests. Not sure why that is at the moment; I'll have to take a look at that later.

[abidlabs]

Sounds good, thanks for the explanation @proxyphi. Backend changes look good -- I made some minor cleanups to the docstrings.

@aliabid94 would you be able to review the frontend changes?

[abidlabs]

Thanks for fixing the tests @proxyphi! Opening this up for review

[proxyphi]

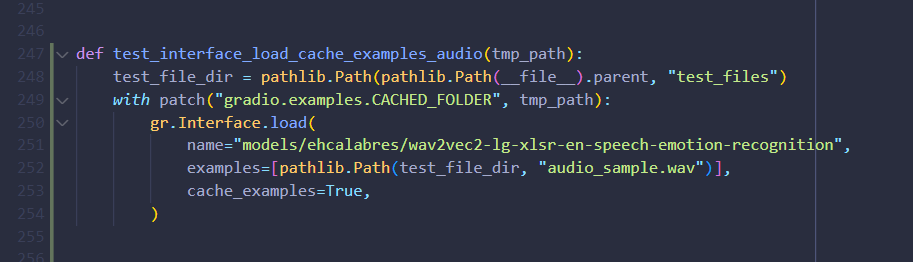

Great! So I believe that one image-related test failing currently in test_external.py has made me aware of another potential issue: cached examples for audio (and other media types, probably) may not work with the external API to my understanding. Tried the following test locally:

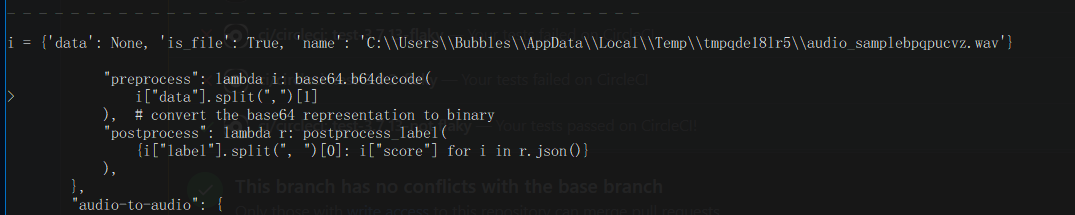

Result:

[abidlabs]

This is testing the processing_utils.encode_file_to_base64() function rather than the gr.Image.postprocess() function. Instead, we can use file comparisons (filecmp.cmp) to confirm that the postprocessed file is the same as the original file like we do for the Audio and Video components.

[abidlabs]

The tests in test_examples.py are doing the same

[abidlabs]

@proxyphi testing the PR and right now, Image examples in general are not working for me. Does this work for you:

import gradio as gr

gr.Interface(lambda x:x, "image", "image", examples=["lion.jpg"]).launch()

[proxyphi]

Just went ahead and committed some changes that should resolve that issue - I was running into it also. It was being caused by the serialization of the Image component effectively conflicting with the new output from postprocess.

I've made some changes that should make Image more in line with the other media components, though I ran into some general issues revolving around FileSerializable data being passed through Examples, or when passed to the HF API. Some tests I've added with audio confirmed that it wasn't originally limited to the changes to Image.

These should be mitigated now! But I've gone ahead and marked some TODO's where I felt things may need a closer look 😇

[abidlabs]

Thanks so much for making the fixes @proxyphi! Taking a look now
